D7 LED Light Pod with DataDim™ TechnologySKU: DNL.D7.050 UPC: 810005872027
Standard Powersports Harness - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single intensity install
- Standard Automotive Harness - Robust, added length, and a flush mount illuminated rocker switch for dash mounting
- Premium Powersports Harness - Overmolded wire, and a premium illuminated switch with handlebar mounting kit
- DataDim Module - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
- DialDim Lighting Controller - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!
- High-Intensity Series Cree LEDs outputting 7665 lumens per pair
- TriOptic™ Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one pair of pods
- DataDim™ equipped light pods enable plug and play connection, and integrated dimming, with DENALI dimming and lighting controllers.
- DrySeal™ Submersible Waterproof light housings can withstand the most extreme environments
- Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
- Low profile mounting bracket with stainless steel hardware included
- Additional pair of E-Mark Approved flood lenses included
- Interchangeable lenses available in Clear, Amber, and Selective Yellow
- LED's: (14x) 10 Watt Cree XPL HI
- Power Draw: 10 Amps
- Raw Lumens: 15330
- Beam Distance: 1505 feet
- Beam Width: 200 feet
- DataDim™ Compatible: Yes
- Operating Voltage: 12 VDC

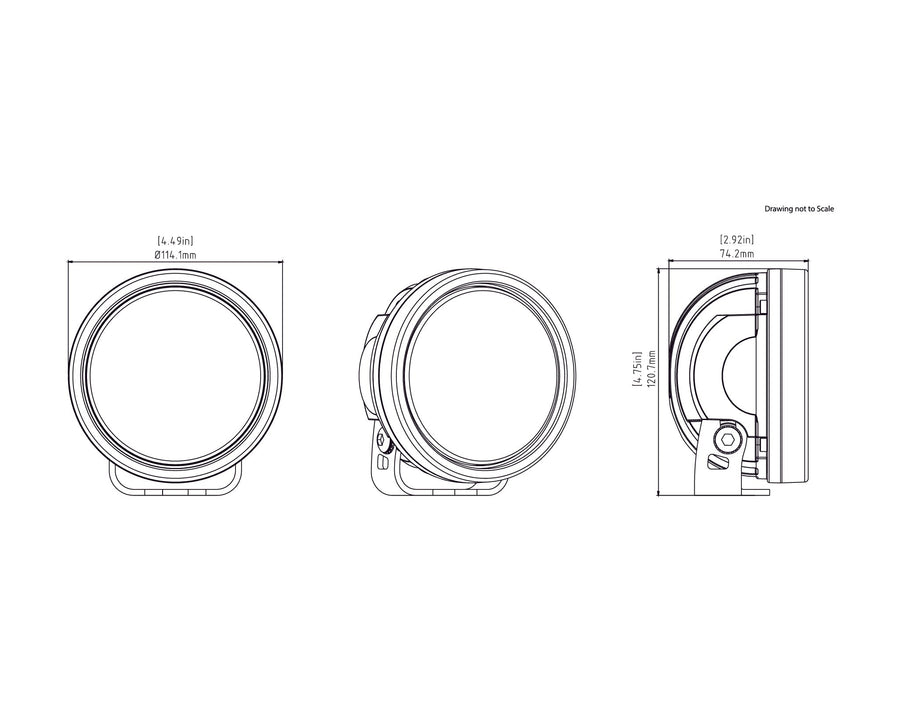

- Pod Size: 4.4" Round x 2.9" Deep
- Pod Weight: 1.8 lbs
- IP67 Waterproof & Submersible
- E Mark Approved Spot Lens
- (1x) LED Light Pods
- (1x) Hinge Mounts with M8 Stainless Steel Hardware
- (1x) Wiring Pigtail
- (2x) Spot Lenses (Amber or Yellow)
- (1x) Flood Lenses (Amber or Yellow)
At over 7,500 lumens, the DENALI D7 light pod is one of the brightest LED lights under 4.5 inches period. The light pod features seven high-intensity 10 watt LEDs that are focused through a proprietary single piece optic that was specifically engineered to create a full bodied spot beam that can reach over 1200 feet at one lux. The robust heatsink and Active Thermal Management™ work together to keep this high-powered lamp cool enough to maintain maximum light output when you need it most.
Still not convinced this light is bright enough? A D7 pod will outshine seven D2 lights and produces more than twice the light output of our beastly D4 light pod.
Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!
More Flexibility, Maximum Control
For 2022 we have expanded on our standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options above or click on the links below to learn more about each of our wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!
And last but not least we also make a complete accessory manager (The CANsmart Controller) that has dozens of customizable settings for controlling LED lights but can also be used to power and control any electrical accessories from lights and horns to heated grips, dash cams and GPS units.
D7 Pod Features
D7 Pod Specs (Pair)
D7 Light Pod Box Contents - DNL.D7.050
D7 Lens Kit Box Contents - DNL.D7.10100 (amber) - DNL.D7.10200 (yellow)
Instruction Manual Download
