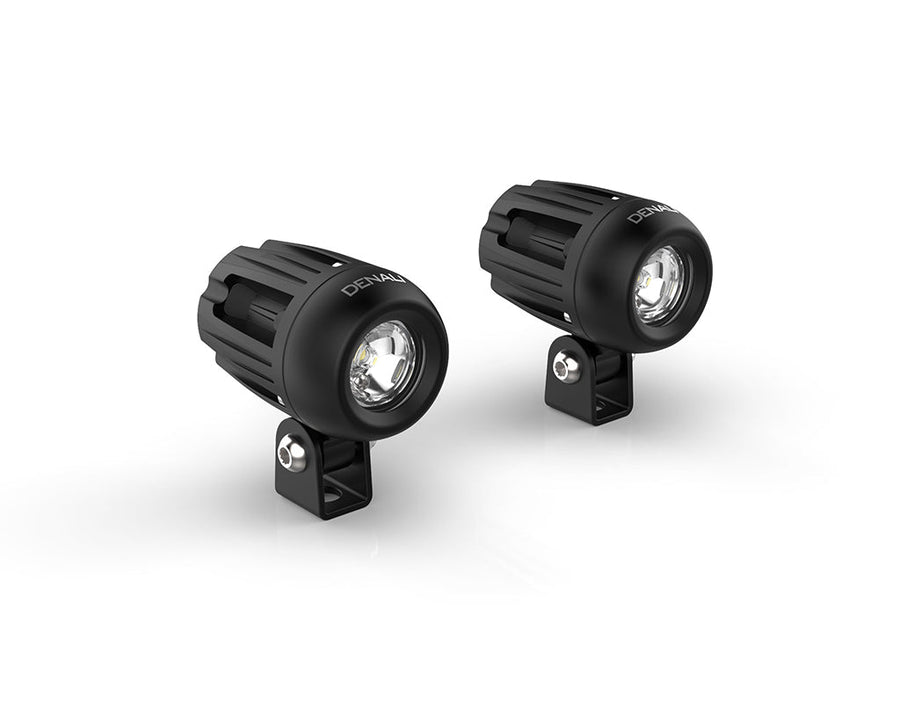

DM LED Light Pods with DataDim™ TechnologySKU: DNL.DM.050.W
Standard Powersports Harness - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single intensity install
- Standard Automotive Harness - Robust, added length, and a flush mount illuminated rocker switch for dash mounting
- Premium Powersports Harness - Overmolded wire, and a premium illuminated switch with handlebar mounting kit
- DataDim Module - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
- DialDim Lighting Controller - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!
- High-Intensity Series Cree LEDs outputting 2190 lumens per pair
- TriOptic™ Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one pair of pods
- DataDim™ equipped light pods enable plug and play connection, and integrated dimming, with DENALI dimming and lighting controllers.
- DrySeal™ Submersible Waterproof light housings can withstand the most extreme environments
- Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
- Low profile mounting bracket with stainless steel hardware included
- Additional pair of E-Mark Approved flood lenses included
- Interchangeable lenses available in Clear, Amber, and Selective Yellow
- LED’s: (2x) 10 Watt Cree XPL HI
- Power Draw: 1.6 Amps
- Beam Distance (Spot): 395 Feet
- Beam Width (Spot): 55 Feet
- Raw Lumens: 2190
- Intensity: Single Intensity Harness
- DataDim™ Compatible: Yes
- Operating Voltage: 12 VDC
- Pod Size: 1.7” Round x 2.4” Deep (each)
- Pod Weight: 0.5 lbs (each)
- IP67 Waterproof & Submersible
- E Mark Approved Flood Lenses

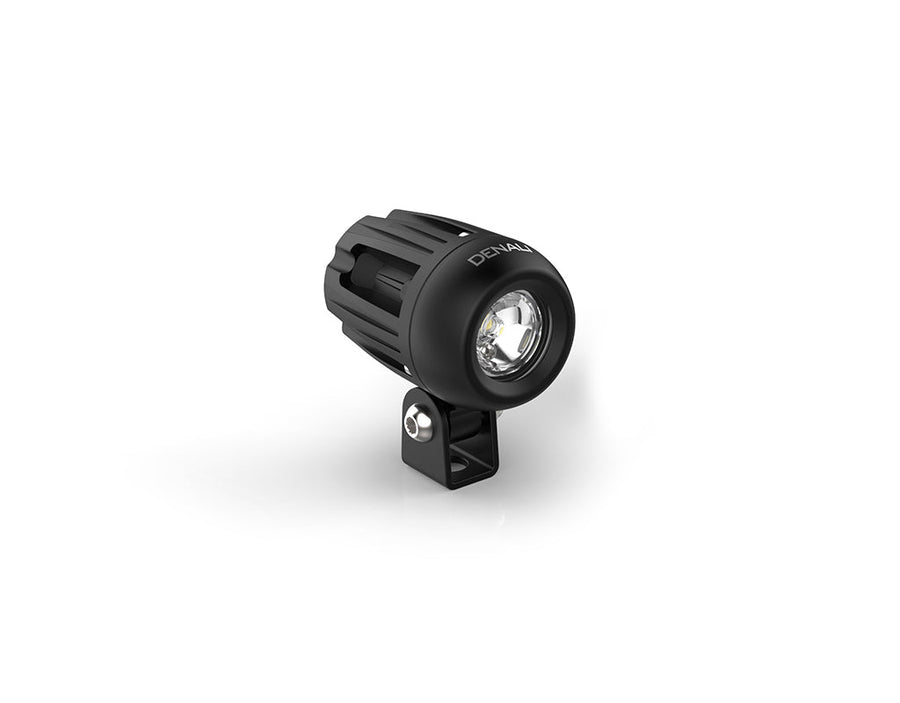

- (1x) LED Light Pod
- (1x) Spot Lens (Installed)
- (1x) Flood Lens
- (1x) M8 Mounting Hinge with Stainless Steel Mounting Hardware
- (1x) Wiring Pigtail
- (2x) Spot Lenses (Amber or Yellow)
- (1x) Flood Lenses (Amber or Yellow)
The DM was designed to concentrate all 2190 lumens into a small optic to create a super-compact light that is incredibly bright to look at. These lights are the ideal solution for daytime visibility but will still outshine your typical high beam. The installed spot beam lenses create a beam that reaches a distance of 395 feet (per pair). The included flood lenses carry an official E-Mark certification and throw a beam of light 150 feet wide.

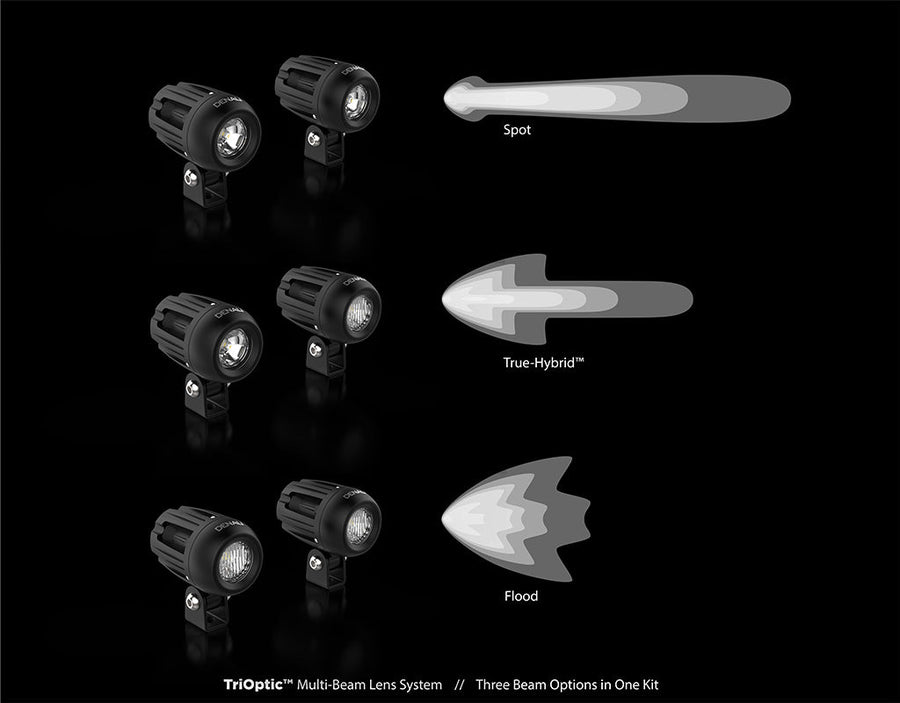

Our TriOptic™ Lens System means that each light pod has a factory-installed clear spot lens but also includes an optional flood lens to enable three different beam options when used as a pair (Spot, Flood, or Hybrid).

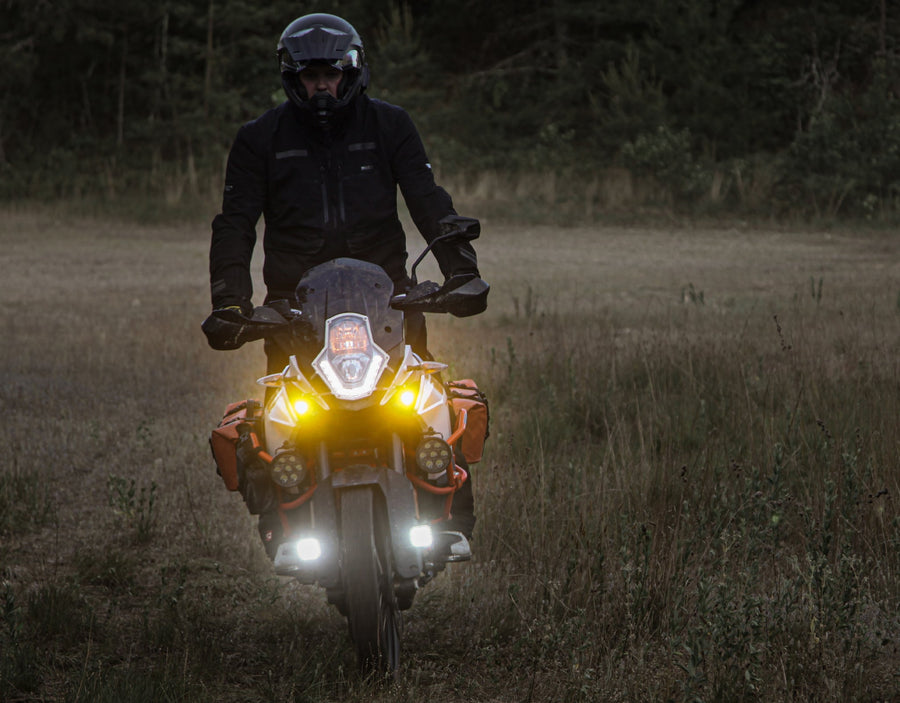

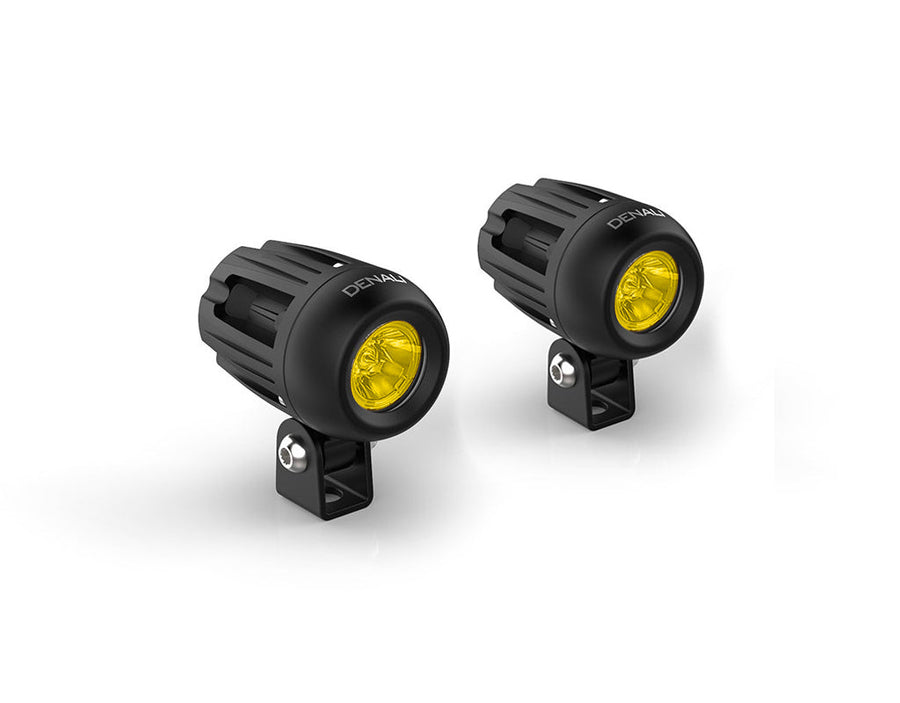

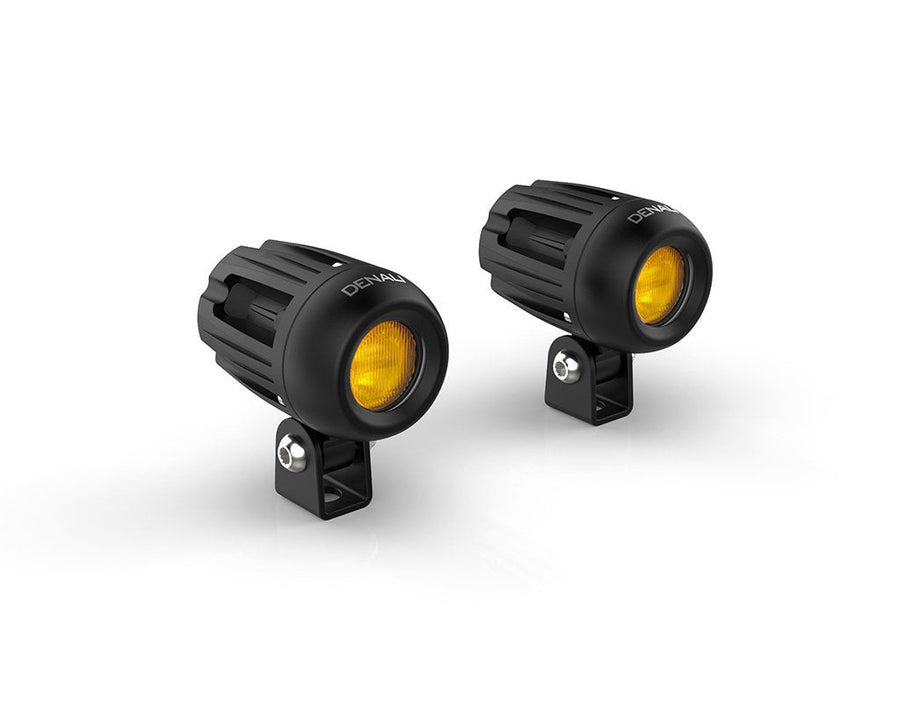

Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!
New Wiring & Switching Options
For 2022 we have expanded on our standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options above or click on the links below to learn more about each of our wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!
And last but not least we also make a complete accessory manager (The CANsmart Controller) that has dozens of customizable settings for controlling LED lights but can also be used to power and control any electrical accessories from lights and horns to heated grips, dash cams and GPS units.
DM Light Pod Features
DM Pod Specs (pair)
DM Product Bundles - What’s Included?
The default product options above labeled (pair) include (2x) light pods with clear lenses installed (and an additional set of amber or yellow lenses if selected).
You can then choose to add one of our four wiring harness options.
All products included in this bundle are packaged in separate retail boxes and may ship separately. See below for the specific box contents of each light pod and lens kit.
DM Light Pod Box Contents - DNL.DM.050
DM Lens Kit Box Contents - DNL.DM.10100 (amber) - DNL.DM.10200 (yellow)
Instruction Manual Download
