Switched Power Adapter - 194 Marker Bulb

SKU: EC.02350 UPC: 641461023506
Be the first to write a review

€55,95

Quantity

In Stock

Ships within 1-2 business days
  • Product Description

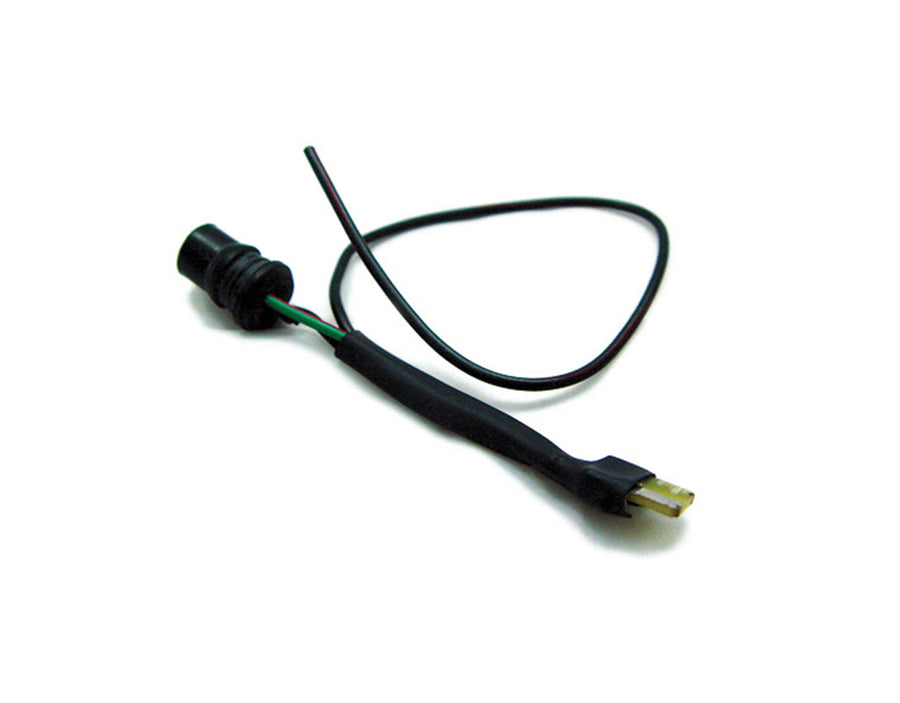

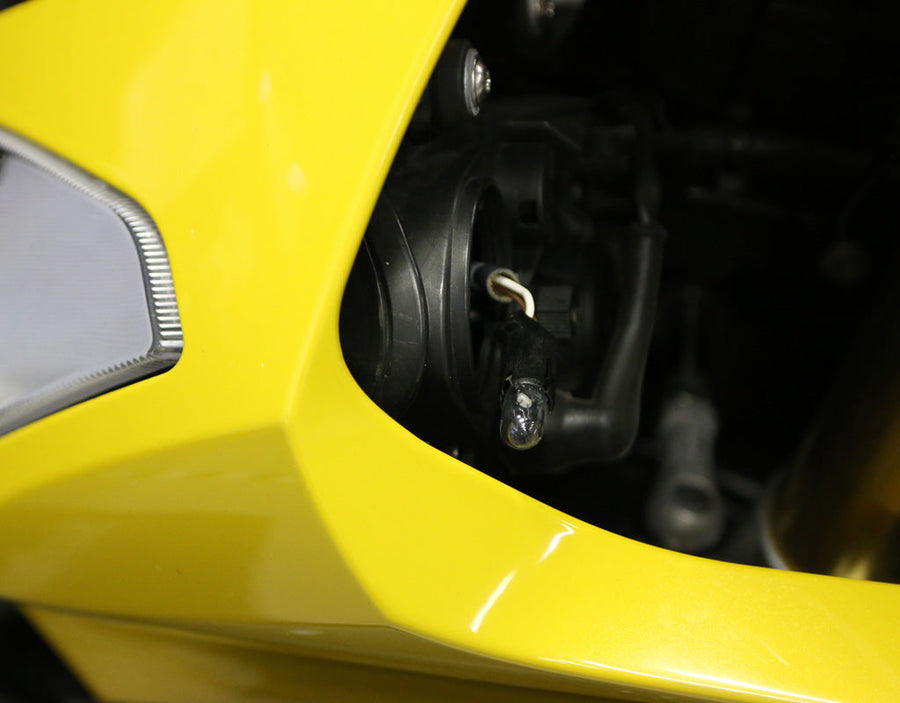

      This adapter is designed to enable plug-n-play connection to switched power on any vehicle equipped with a 194 marker bulb. 194 marker bulbs are commonly found in headlight housings, functioning as a running light.

      Features

      • Provides switched 12v trigger to activate a relay
      • Built-in Reverse Polarity Protection
      • Not cutting or tapping of factory harness necessary

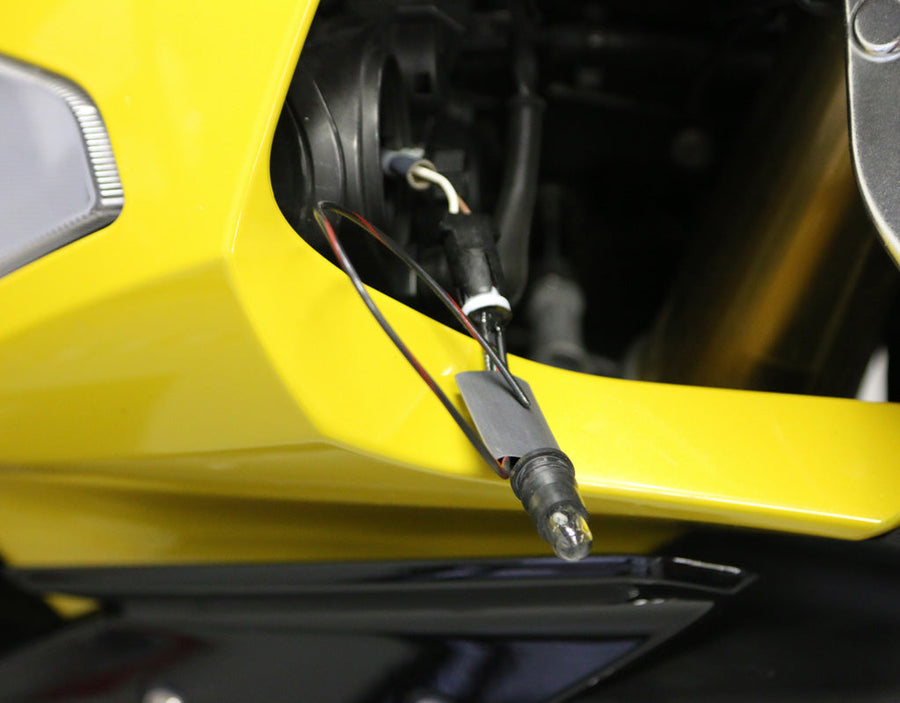

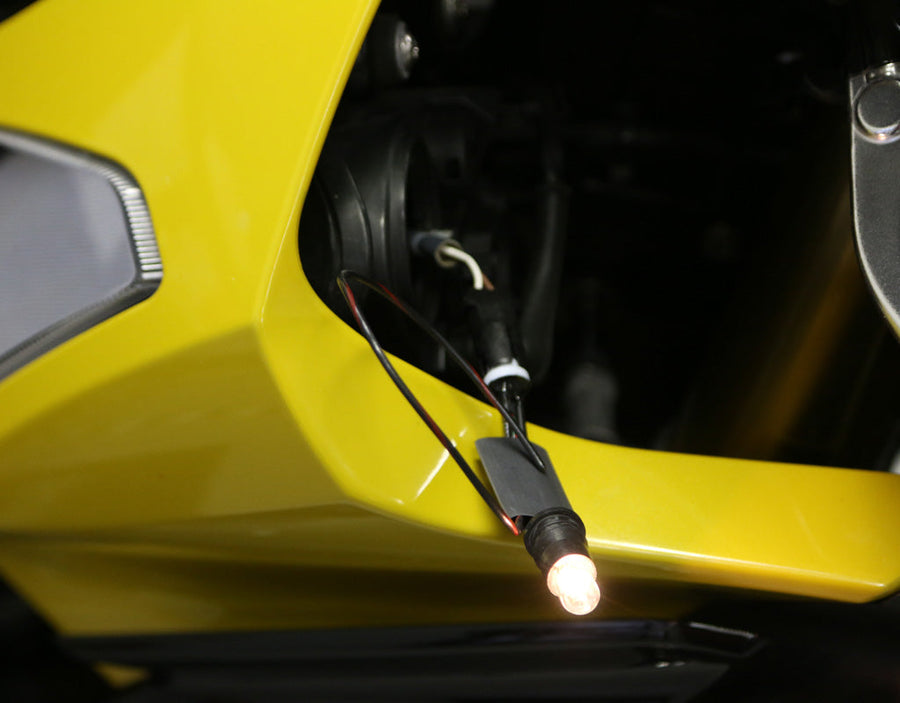

      Installation

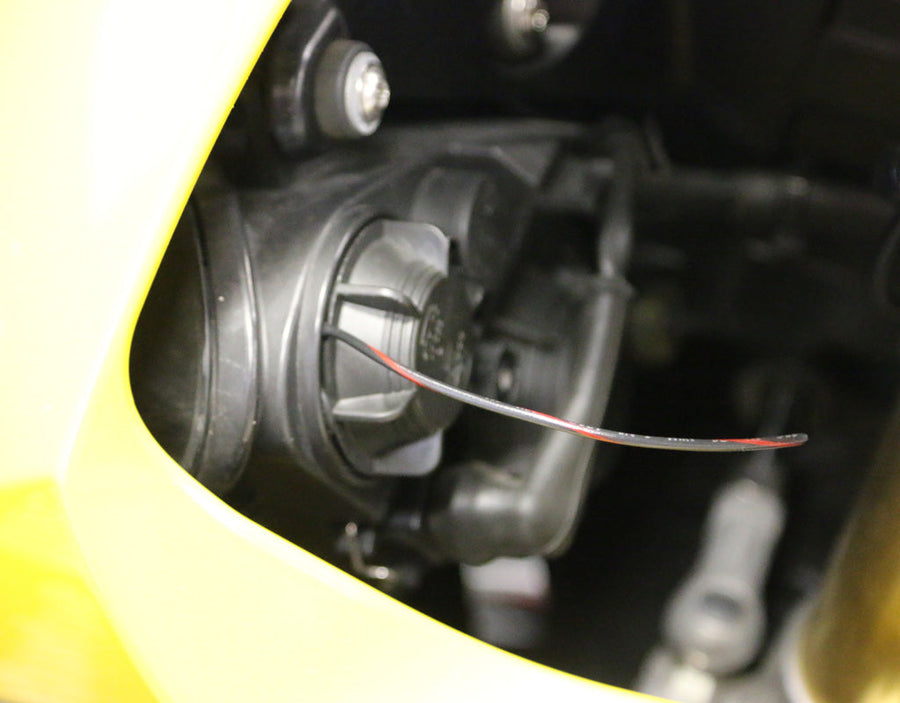

      • Remove the socket from the headlight housing.
      • Unplug the bulb from the socket.
      • Plug the circuit board into the socket from where you just removed the bulb.
      • Place heat shrink over the socket and circuit board and apply heat.
      • Plug the bulb into the new socket.
      • Using the lead coming from the socket, activate an external relay.

      External relay not included

      Fitment Note: Only compatible with bikes that use a 194 marker bulb and have a "universal" bulb connector; will not fit bikes with a custom OEM 194 bulb connector.
