Controlador de intensidade dupla DataDim™ para chicote de luz de condução
SKU: DNL.WHS.11000UPC: 810005870306
Preço regular
$54.99 USD
Preço de venda
$54.99 USD
Preço regular
$54.99 USD
Preço unitário
/por
Apenas 282 esquerda!
In Stock
Low stock (282) Order Soon!
Ships within 1-2 business days
Questions & Answers

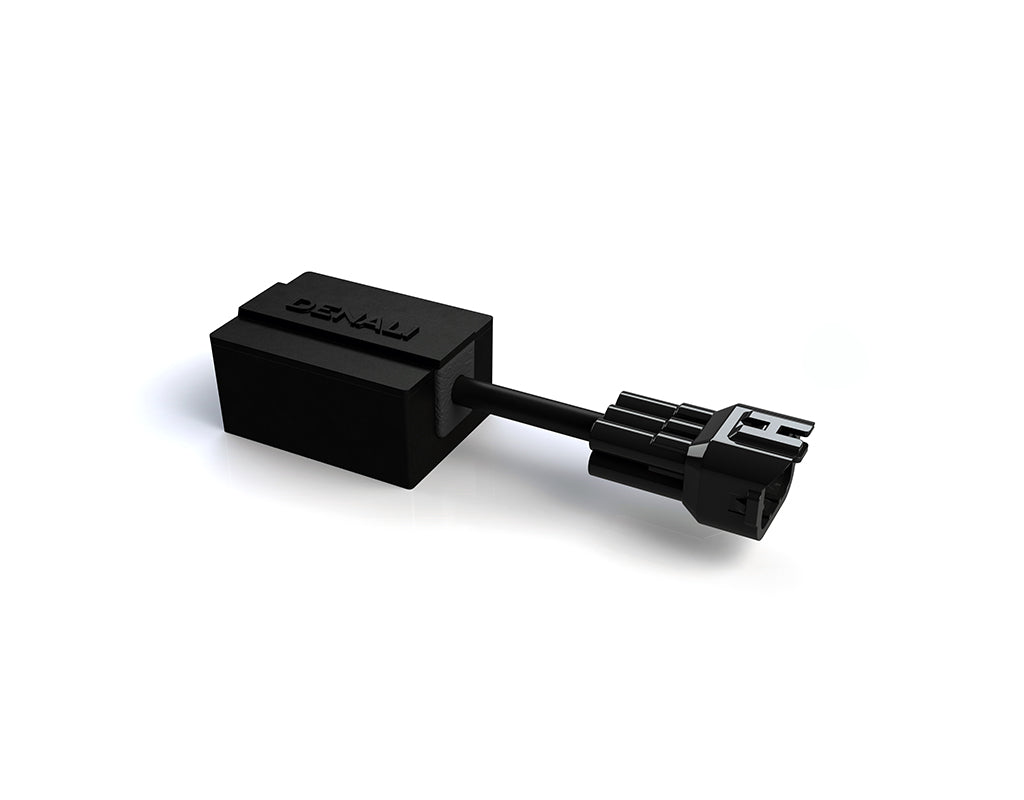

Este controlador de dupla intensidade DENALI DataDim ™ permite que as luzes de direção DENALI alternem entre meia intensidade e intensidade total com o interruptor de farol alto original do seu veículo. Basta conectar este controlador na extremidade do chicote incluído em nossos kits de luz para ativar a funcionalidade de dupla intensidade.
Todos os pods de luz DENALI 2.0 são equipados com um circuito de dimerização de 3º fio dedicado para que possamos usar um sinal externo para controlar de forma confiável a intensidade do chip LED na fonte

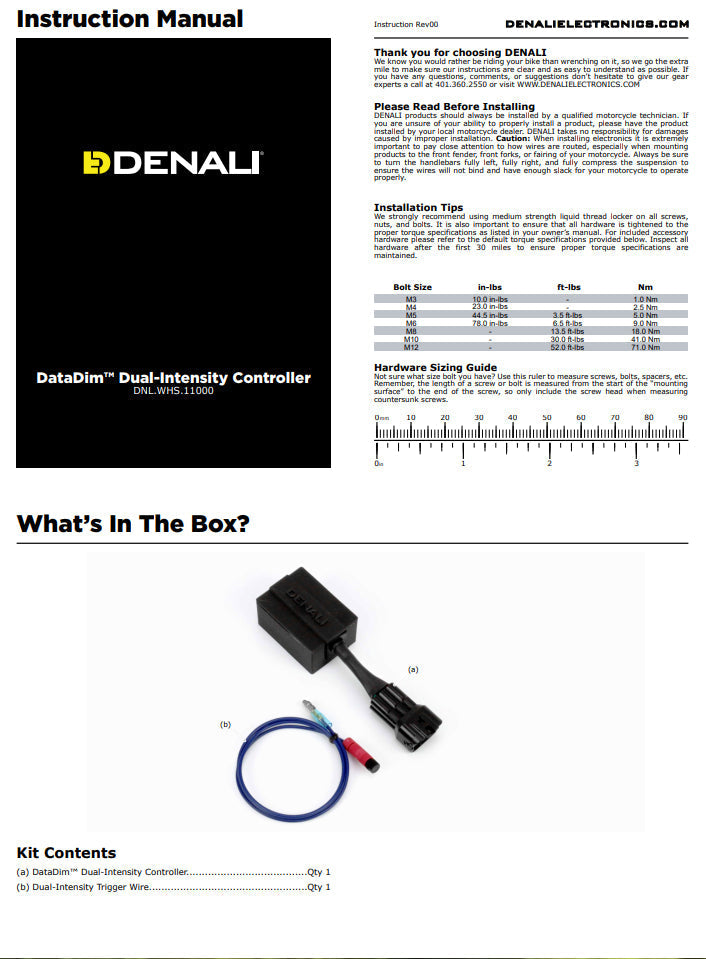

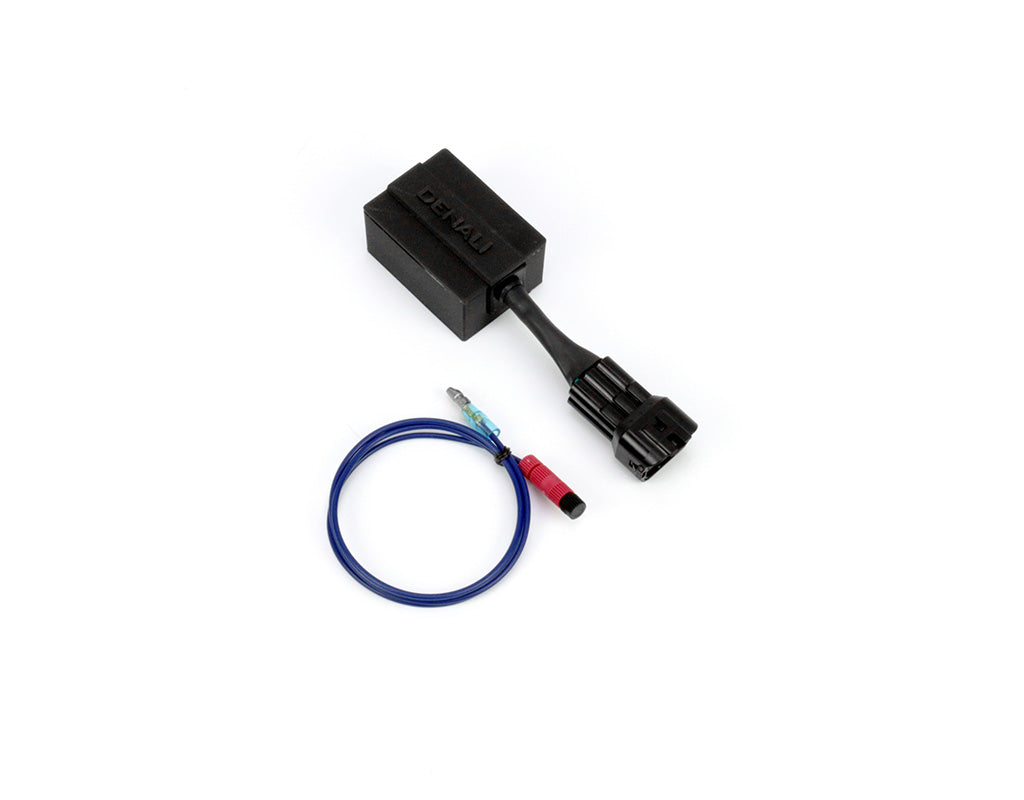

O que está na caixa?
(x1) Controlador de dupla intensidade DataDim™
(x1) Fio de gatilho de dupla intensidade
Nota de montagem: Veículos equipados com faróis de LED podem utilizar um circuito comutado à terra, que não acionará a função do DataDim com os controles de farol alto de fábrica. Veículos com faróis comutados para o solo exigirão o interruptor à prova d'água DENALI 2.0 DrySeal™ Hi-Low-Off, além do DataDim™ para alternar entre farol alto e farol baixo.
