Inicio»Accessory Management»CANsmart>Controlador CANsmart™ GEN II V-Twin - Harley-Davidson Street Glide, Road Glide, Sportster, Dyna, Softail, Touring, CVO y Trike
Compartir:
Questions & Answers
Controlador CANsmart™ GEN II V-Twin - Harley-Davidson Street Glide, Road Glide, Sportster, Dyna, Softail, Touring, CVO y Trike
SKU: DNL.WHS.12300UPC: 810005872034
Precio normal
$285.00 USD
Precio de venta
$285.00 USD
Precio normal
$285.00 USD
Precio unitario
/por
¡Solo 140 restantes!
In Stock
Low stock (140) Order Soon!
Ships within 1-2 business days
Questions & Answers
El innovador controlador CANbus de Harley-Davidson proporciona conexión plug & play y control inteligente de accesorios originales y no originales de Harley-Davidson directamente desde los interruptores originales de su motocicleta o el software DENALI Accessories Manager. Simplemente conecte el controlador CANsmart™ al puerto de diagnóstico de su Harley-Davidson para acceder a más de 35 configuraciones de accesorios programables que brindan control inteligente de las luces de paso de fábrica, luces auxiliares, bocinas, luces de freno o cualquier otro accesorio que pueda imaginar. Los cuatro circuitos accesorios están fusionados electrónicamente y pueden proporcionar hasta 25 amperios máximos (10 amperios continuos).
El CANsmart H-D es compatible con más de 60 modelos Harley-Davidson, incluidos todos los Road Glide, Street Glide, Sportster y Dyna, modelos Softail, Touring, CVO y Trike desde 2014 hasta la actualidad.
Características
Sincronización alta/baja: configure las luces de cruce y las luces auxiliares para cambiar entre una configuración alta/baja programable con el interruptor de luces altas de fábrica.
Encendido/apagado y atenuación: controla de forma independiente el encendido/apagado de dos juegos de luces y cambia el nivel de intensidad (tanto de día como de noche) directamente desde el interruptor de viaje de fábrica de tu bicicleta. Haga clic tres veces para encender/apagar las luces, o manténgalo presionado durante 3 segundos para ingresar al modo de atenuación donde puede alternar entre 10% y 100% de intensidad.
Modular luces: configure las luces de cruce o luces auxiliares para modularlas y aumentar su visibilidad para otros conductores.
Flash to Pass: ¿Necesitas llamar la atención de alguien? Presione el interruptor de luces altas tres veces y las luces auxiliares parpadearán tres veces más rápido.
Cancelar con señal de giro: esta función cancela la luz auxiliar correspondiente cuando enciende la señal de giro, evitando que las luces auxiliares potentes dominen su señal.
Destello con señal de giro: esta función hace parpadear la luz auxiliar correspondiente cuando enciendes la señal de giro, lo que permite que las luces auxiliares funcionen como señales de giro.
Instalación de bocina Plug & Play: conecte rápida y fácilmente bocinas no originales de alta potencia como nuestra SoundBomb™ sin tener que agregar un arnés o relé adicional.
Luz estroboscópica con bocina : con esta función seleccionada, el software CANsmart™ encenderá automáticamente la luz estroboscópica de las luces de cruce o las luces auxiliares cuando suene la bocina. Esta característica funciona ya sea que tenga instalada la bocina de fábrica o la bocina SoundBomb™.
Tecnología de "freno inteligente" activada por desaceleración: CANsmart™ lee la velocidad del vehículo en tiempo real para activar la luz de freno auxiliar durante la desaceleración, incluso antes de tocar el freno. Puede ajustar la sensibilidad y la velocidad mínima a la que se activará la función de freno inteligente.
Frenado con patrón de destellos: CANsmart™ proporciona cuatro patrones de destellos diferentes que hacen que nuestras luces de freno auxiliares súper brillantes sean incluso perceptibles para los conductores detrás de usted. Puede configurar las luces de freno auxiliares para que solo parpadeen al frenar bruscamente, parpadeen continuamente cuando se aplica el freno o parpadeen cuatro veces rápidamente y luego se mantengan estables (velocidad de parpadeo legal de California).
Compatible con accesorios originales Harley-Davidson: preferimos las luces DENALI, pero Harley también tiene algunas luces increíbles. CANsmart™ puede proporcionar "freno inteligente" y frenado con patrón de destello a una amplia variedad de accesorios, incluidas las luces de freno LED del mercado de repuestos de Harley-Davidson.
Fuente de alimentación conmutada: CANsmart™ proporciona una opción de "accesorio" universal que simplemente le proporciona alimentación limpia y conmutada de 12 V. Eso significa que cualquier accesorio que conectes a este circuito se encenderá y apagará con el encendido.
Tiempo de espera de retardo: también puede configurar los accesorios de este circuito para que tengan un tiempo de espera de retardo. Esto los mantendrá encendidos durante hasta 30 segundos después de apagar la bicicleta.
Alimentación a bordo: la opción de circuito "accesorio" es ideal para alimentar su GPS, teléfono, equipo calefactable o cualquier otro dispositivo electrónico.
¿Qué hay en la caja?

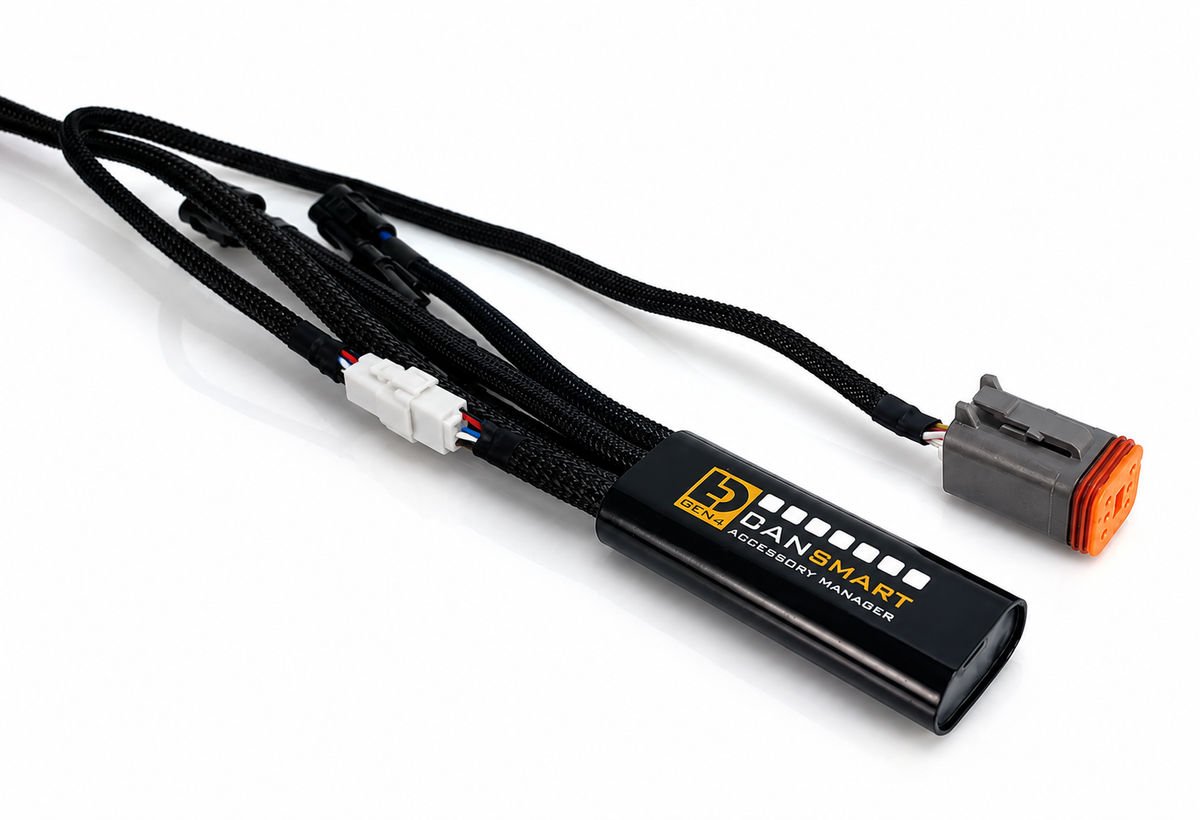

Controlador CANsmart™
(x2) Cables de extensión de luz de 5.5 pies
(x2) Adaptadores de cableado de lámpara de cruce OEM
Cable de extensión de bocina SoundBomb de 5 pies
Adaptador de cableado de luz de freno B6
Bridas
Cierre adhesivo de gancho y bucle
Cable de programación micro USB
Conector EURO 5 (ver montaje del vehículo)
Conector alemán
Software CANsmart
Haga clic AQUÍ para descargar el software CANsmart Accessorio Manager para Windows o Mac
Montaje del vehículo
Este kit incluye ambos estilos de conectores de puerto de diagnóstico Harley-Davidson, por lo que es compatible con todos los modelos siguientes. Utilice el conector EURO 5 rojo en los modelos 2021 y más nuevos, como se indica a continuación en BOLD.
Fuga 117 (FXBR) 2023
CVO limitado (FLHTKSE) 2014-2020
CVO Pro Street Breakout (FXSE) 2016-2017
CVO deslizamiento en carretera (FLTRXSE) 2015-2020
CVO carretera rey (FLHRSE) 2014-2014
CVO Street Glide (FLHXSE) 2015-2020
Dyna gordo Bob (FXDF) 2012-2017
Dyna Low Rider (FXDL) 2012-2017
Dyna Low Rider S (FXDLS) 2016-2017
Dyna calle Bob (FXDB) 2012-2017
Dyna Super Glide personalizado (FXDC) 2012-2014
Dyna Super Glide personalizado 110 aniversario (FXDC) 2013-2013
Retroceso Dyna (FLD) 2012-2016
Dyna gran deslizamiento (FXDWG) 2012-2017
Policía de Electra Glide (FLHTP) 2014-2015
Electra Glide Ultra clásico (FLHTCU) 2014-2020
Electra Glide Ultra clásico bajo (FLHTCUL) 2014-2016
Electra Glide Ultra limitado (FLHTK) 2014-2020
Electra Glide Ultra limitado bajo (FLHTKL) 2014-2020
Sportster cuarenta y ocho especial (XL1200XS) 2018-2020
Sportster Hierro 1200 (XL1200) 2018-2019
Sportster Hierro 883 (XL883N) 2014-2020
Sportster Roadster (XL1200R) 2016-2019
Sportster setenta y dos (XL1200V) 2014-2015
Sportster Superbajo (XL883L) 2014-2019
Calle Bob 114 (FXBB) 2022-2023
Deslizamiento callejero (FLHX) 2014-2020
Street Glide gritando águila (FLHXSE) 2014-2015
Especial Street Glide (FLHXS) 2014-2020
Especial Street Glide (FLHXS) 2021-2023
Tri Glide Ultra (FLHTUTG) 2022-2023
Tri Glide Ultra clásico (FLHTCUTG) 2014-2020
Ultralimitado (FLHTK) 2021-2023
Nota: El controlador CANsmart™ se conecta al puerto de diagnóstico Harley-Davidson. Si tiene un accesorio no original, como un sistema de administración de combustible, que también se conecta a este puerto, puede comprar un cable divisor aquí: Cable de paso CANsmart™ para Harley-Davidson .
